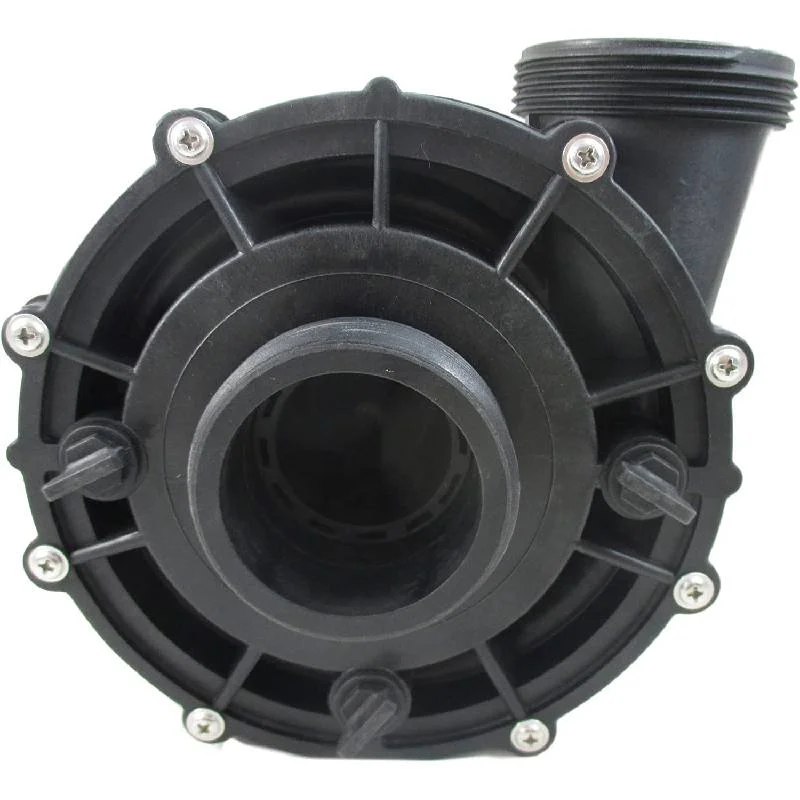

Waterway 310-2380 3HP 56FR Wet End

Description

Waterway 310-2380 3HP 56FR Wet End

This Waterway 310-2380 3HP 56FR Wet End fits Guangdong LX Brand Pump Motors only. These pumps usually have the part number WUA-300, WP-300 or LP-300 on the label. Watch the video for instruction on how to install this part and also how to determine if this is the correct part. It is about 7 1/4″” across the face of the pump, it measures about 7 3/8″ from the bottom to the top of the pressure side of the volute, it also measures 4 13/16″ from the back to front edge.

NOTE: This Wet End looks a lot like an Aqua-Flo and a CMP Wet End but they do not interchange! Note: This Wet End Fits Guangdong Chinese LX and LP series Pumps only Some Pump Part numbers are as follows: (WUA300-II, WUA300-I) (LP300) (WP300-II/,300-I) To Install this wet end you will have to loosen the thru bolts and unscrew the impeller.

Waterway 310-2380 3HP 56FR Wet End Features:

• See our You Tube Video about this Pump “LX Series Guangdong Pump How To Repair The Spa Guy”.
• 2″ x 2″ Inlet and Outlet that measures 3″ across the threads.
• 56fr is 5 7/8″ center to center on the X bolt pattern.
• Fits WUA300 LP300 and Guangdong LX Pump.
• LX Series Jet Pump 3HP Wet End.
