Pool Cove Peel & Stick 48 Inch – PNP192XL
All above ground swimming pools need a cove! Read any pool manufacture’s installation instructions and you will find:
“Thecove is a vital structural element of your pool.” A cove is needed to keep theweight of the water in the pool liner from causing it to balloon out under the bottom ofthe pool wall. Previously, pool cove had to be hand built, in place, using tons of sandor dirt. Liner failures due to cove washout were all too common. Corrosion occurs rapidlywhere metal components, at the bottom of the pool, come in contact with moisture in thesand or dirt. Hand formed coves are uneven, with hand or shoe prints, making cleaningdifficult.
|

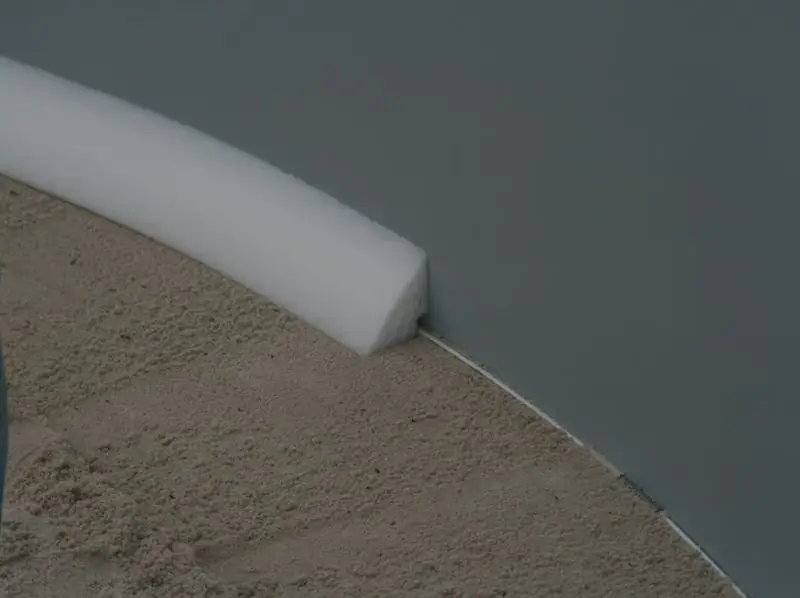

Peel Off backing and affix to wall as shown. |
Butt pieces up against each other insuring that there are no gaps. |
Lightly broom sand on top of pool cove. |
|
Hose sand down till it is even with bottom of cove |
Tamp Sand around entire pool bottom. |
Install Liner as normal. |
|
Liner rests tight against cove creating a sealed barrier, keepingmoisture from getting between the wall and liner. |
Sand and dirt can be washed out leaving a gap and causing excessivestrain on the liner that could result in liner failure. |
A Pool cove becomes part of your pool to seal the space between thewall and the liner and to prevent liner strain. Made from chemically-neutral foam, ithelps fight corrosion. It’s compatible with all vinyl liners. Eliminates the need forbanking of sand, otherwise used to create a sealed barrier between the wall and liner.Accommodates wall stretch to help prevent liner tearing and leaking. Fights corrosion toadd years to a pool’s life expectancy. Will not erode or freeze; holds its shapeindefinitely.
| # of Coves Needed by Pool Size | |
|---|---|
| Pool Size | Number Of Coves |
| 12′ Round | 10 |
| 15′ Round | 12 |
| 18′ Round | 14 |
| 21′ Round | 17 |
| 24′ Round | 19 |
| 27-28′ Round | 22 |
| 30′ Round | 24 |
| 33′ Round | 26 |
| 12’x16′ Oval | 13 |
| 12’x20′ Oval | 14 |
| 12’x24′ Oval | 16 |
| 15’x24’Oval | 16 |
| 15’x25’Oval | 17 |
| 15’x26’Oval | 18 |
| 15’x30’Oval | 19 |
| 16’x26′ Oval | 18 |
| 16’x32′ Oval | 21 |
| 18’x33′ Oval | 22 |
| 18’x40′ Oval | 26 |
| 21’x41’Oval | 27 |
THE POOL COVE SHIPS AS AN OVERSIZED ITEM DUE TO THE LENGTH OF THE COVE
