Description

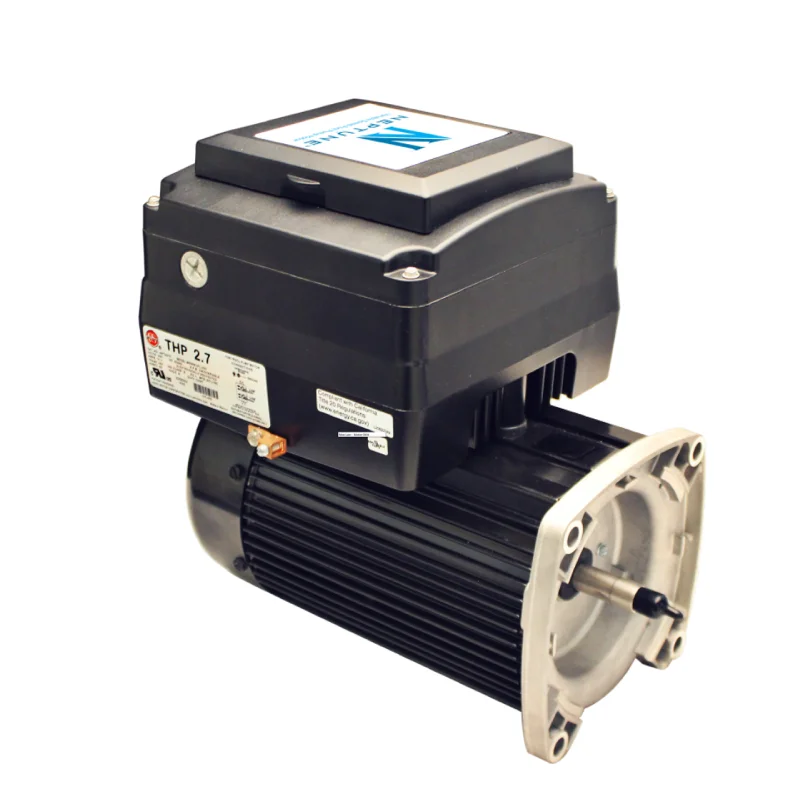

Nidec NPTQ270 2.7THP 230V Speed Neptune Flange Motor
The Nidec variable speed pool pump motor is a premium efficient product that includes a fully integrated motor, control and user interface (UI). This U.S. Motors product gives you programming flexibility and speed range capability. It is also designed to communicate and operate with a variety of external system controllers in addition to the onboard UI.
The Neptune variable speed motor is easy to install. By replacing an old single speed pump motor with a Neptune, your customers can keep their properly functioning pump and quickly upgrade it into a much more energy-efficient product.
Nidec NPTQ270 2.7THP 230V Speed Neptune Flange Motor Features:
- Low temperature monitor. The motor, if set to do so, will automatically turn on during cold temperatures to keep the water moving which helps prevent pipe damage.
- Fully integrated product for simple drop-in installation with no complex motor and control wiring. Simply connect your power supply!
- 1.25THP and 1.65THP models offer dual voltage capability (115/230V).
- Total horsepower (THP) rated, from 1.25THP to 2.70THP.
- Mounting options: Square flange of C-flange 56J mount
- Rotation = counterclockwise viewing the motor shaft
- Capability to set up to seven daily schedules.
- Adjustable priming time and speed
- Speed range = 600 to 3450 RPM.
- Single phase input, 50 or 60 Hz.
- Menu keypad lockout feature
- Efficiency is 80%+.
.
